Configure OAuth Server using Grafana.

Requirements#

• Have access to the OAuth Server Blocklet

• Have administrative privileges for any third-party applications that require integration (e.g., Grafana).

• Understand the basic OAuth 2.0 flow

Register an OAuth App#

• Log in to your OAuth server's management console (Blocklet Service).

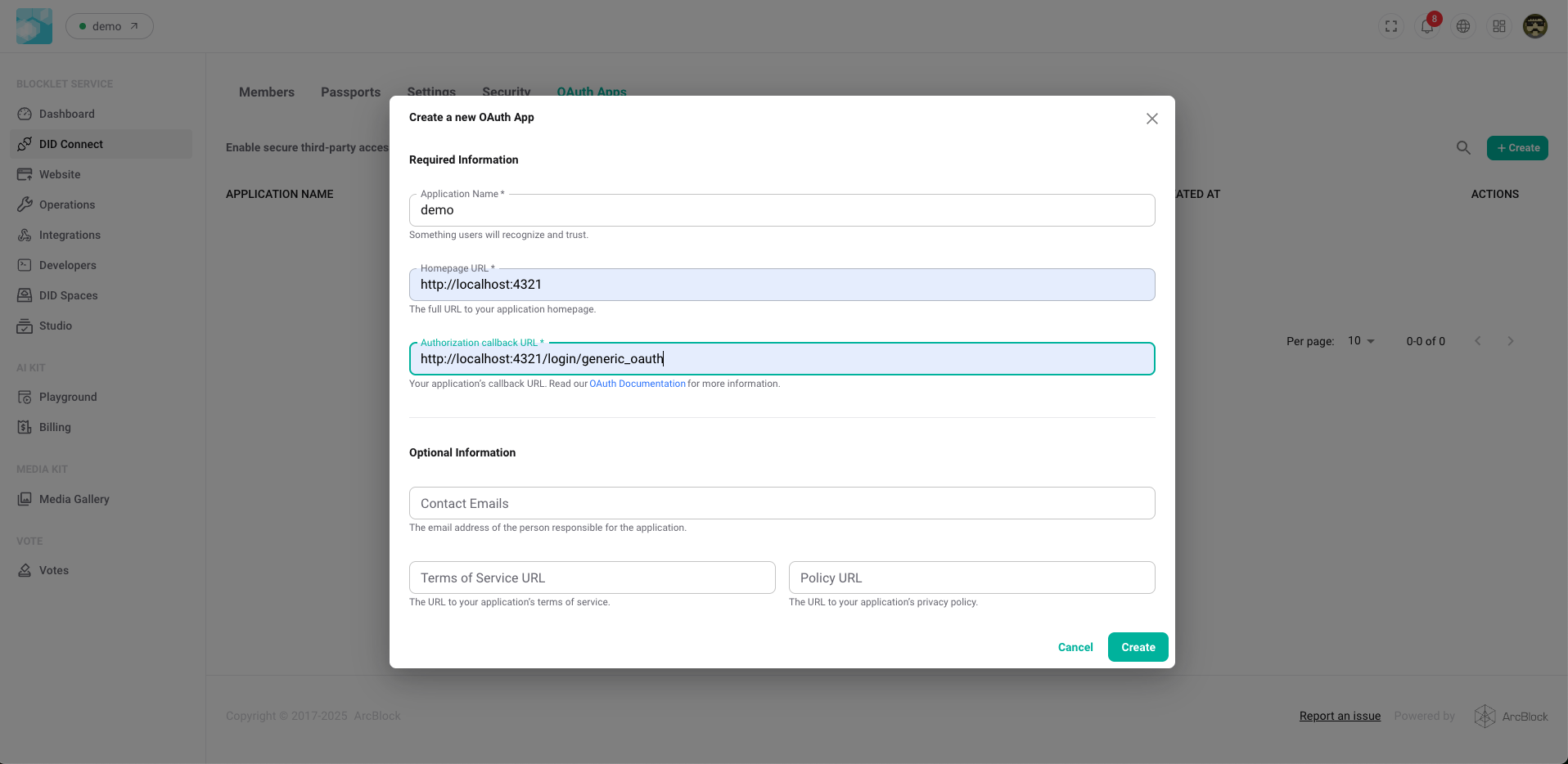

• Create a new OAuth App (DID Connect => OAuth Apps)

• Fill in the required information, including the application name and callback URL (redirect_uri).

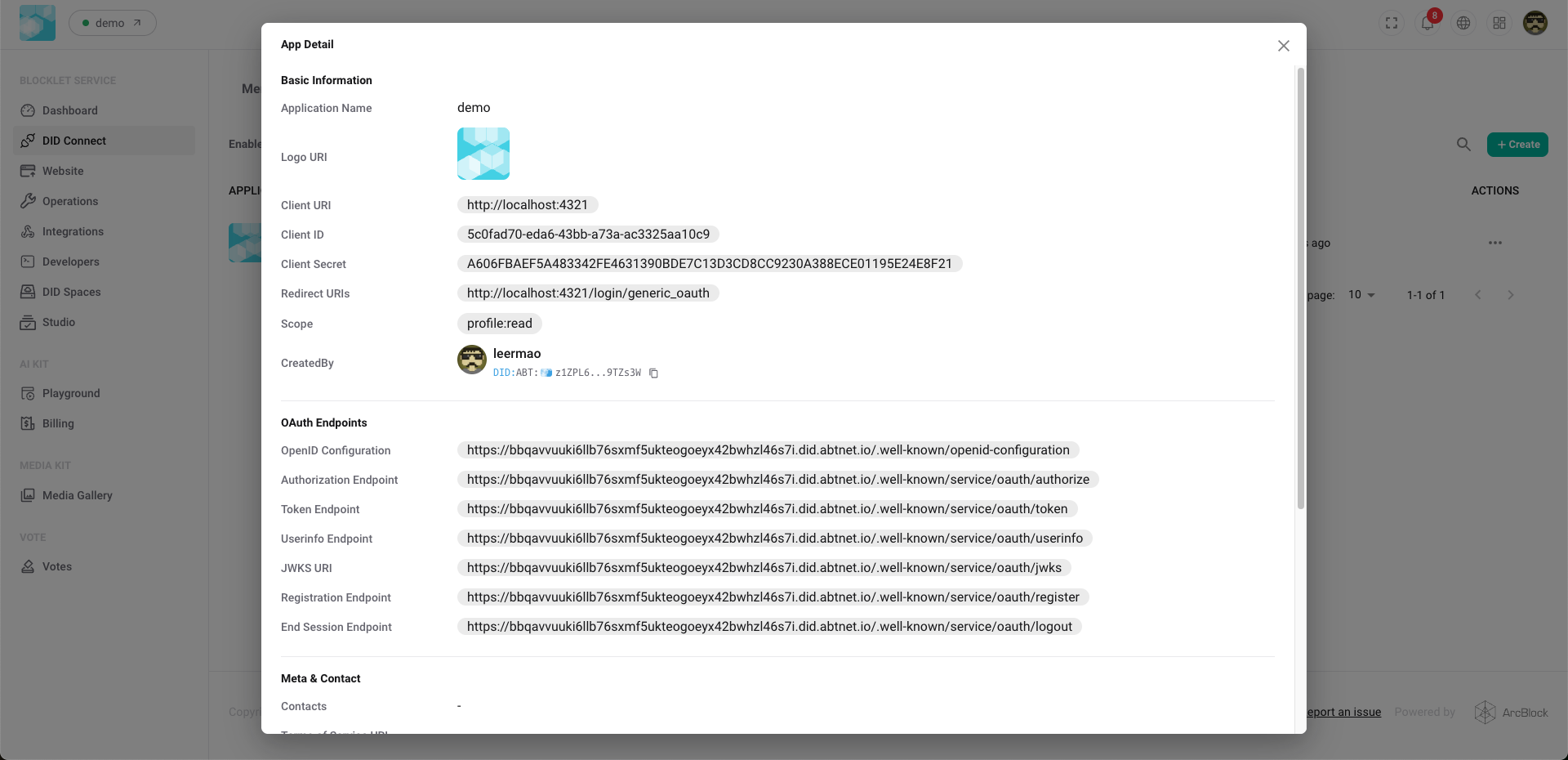

• Save to obtain the Client ID and Client Secret
• Keep your Client Secret secure and confidential.

Configure an OAuth Client (Grafana)#

1. Basic Setup#

• Open the Grafana administration backend and navigate to **Authentication** > **Generic OAuth**.
• Enter Display name, Client ID, and Client Secret

2. OpenID Connect Discovery#

• Enter the OpenID Connect Discovery URL (typically https://your-oauth-server/.well-known/openid-configuration).

• Or manually enter the Auth URL, Token URL, and API URL

3. Authorization and Token Configuration#

• Configure Scopes (currently, only `profile:read` is required)
• Enable Extra security measures and select the Use PKCE option.
• Save

4. After signing out, you can sign in using the OAuth Server.#

5. Frequently Asked Questions and Troubleshooting#

• An incorrect callback address resulted in a 400/401 error.

• Incorrect Scope configuration prevents user information retrieval.

• Responding to a Client Secret Leak

6. Appendix: Example Configuration#

• Provide a complete Grafana configuration screenshot
