Start development

`blocklet.yml`

scripts:
  dev: npm run start

scripts.dev can be configured as any command

If the blocklet is purely front-end, there is no need to set scripts.dev. See blocklet.yml: Types

2. Execute `blocklet dev` in the project root directory

Example:

✔ Blocklet xxxxxxx@x.x.x was successfully started

ℹ You can access with the following URL

- http://xxxxxxxx-xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx.did.abtnet.io

"blocklet dev" will first install an application in the Server, and then automatically hang the blocklet in the application and start it. If you want to hang your blocklet into other applications for development, see "Hang the Blocklet into Application Development"

To hang Blocklet into application development, add --app-did and optional --mount-point parameters to the blocklet dev command.

blocklet dev --app-did <app-did> --mount-point /xxx

BLOCKLET_DEV_APP_DID=<app-did> BLOCKLET_DEV_MOUNT_POINT=/xxx blocklet dev

Configure in .env

BLOCKLET_DEV_APP_DID=<blocklet-app-did>
BLOCKLET_DEV_MOUNT_POINT=/xxx

blocklet dev

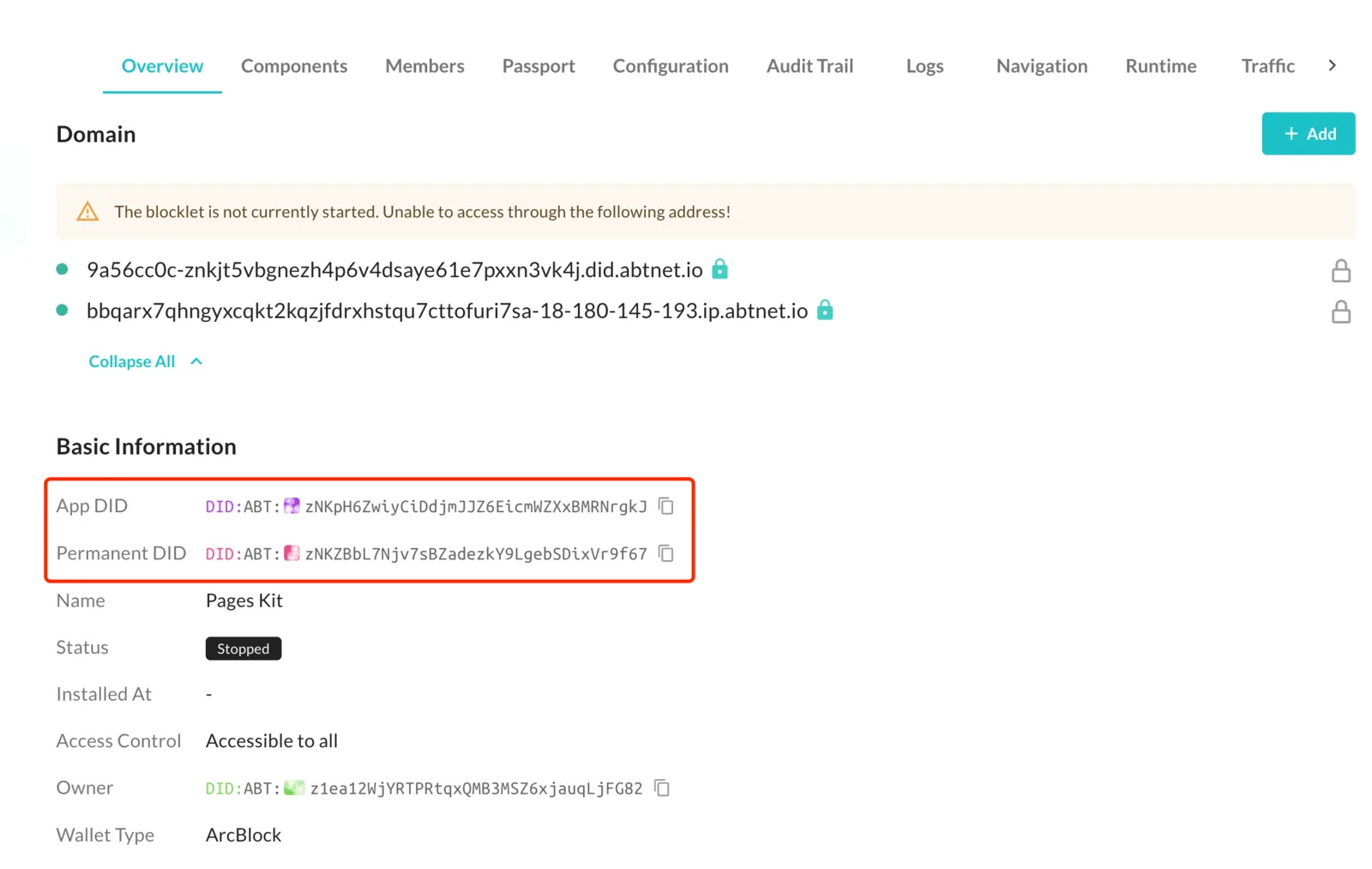

--app-did Can be viewed in the blocklet details page (either App DID or Permanent DID can be used)

/, /path, /path/to

/ or /xxx

Front-end: After introducing blocklet runtime informationwindow.blocklet.prefix

x-path-prefix in the request header.

server.use((req, res) => {
  const mountPoint = req.headers['x-path-prefix'];
});

API

Example:

Component declaration API: /api/foo
/child
Client request /child/api/foo
Blocklet Service forwards the request to the component and removes the prefix /child
Component receives request /api/foo

Redirection

We need to support redirection of the backend working properly with relative paths

const prefix = req.headers['x-path-prefix'];

res.redirect(`${prefix}path/to`);

We need to support front-end redirection working properly under relative paths

const prefix = window.blocklet.prefix;

window.location.href = `${prefix}path/to`;

Load front-end static resources

Because the front-end page of Blocklet will be loaded under a relative path (such as /child1/index.html), we need to support loading front-end static resources under a relative path.

When building the app, change the app's front-end static resource prefix to /.blocklet/proxy/<blocklet did>

PUBLIC_URL='/.blocklet/proxy/xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx' npm run build

You usually don't need to configure it manually. When you create a Blocklet project using Create Blocklet, everything is already configured for you.

Stop development

After starting development, press CTRL + C in the terminal to stop development

Clear data

After you stop developing a blocklet, the persistent data of the blocklet will not be automatically cleared.

You can clear all data of the blocklet through blocklet dev clear

If you hang the blocklet in an application, you can clear the data through blocklet dev clear --app-did <app-did>

Get configuration

After the blocklet is started, the current running environment and configuration of the Blocklet can be obtained through the Blocklet SDK

Get the running environment: see Blocklet SDK: Environment

Get configuration: see Blocklet SDK: Config

Declare configuration

Declare the configuration in blocklet.yml:

environments:
  - name: KEY_1
    description: 'description for KEY_1'
    default: ''
    required: false
    secure: false
    shared: true

name: variable name
description: variable description
default: default value
required: Is it required?
shared: whether visible to clients and components
secure: Environment variables with secure set to true will be stored encrypted and will not be visible to clients and components.

When developing a blocklet, you can also set environment variables in a .env or .env.development file in the project root directory

Note: Only environment variables declared in blocklet.yml can be set in .env or .env.development

Example:

# .env

KEY_1=value1

After blocklet is installed, users can configure environment variables in the blocklet management panel.

Get the blocklet running environment on the page

You can obtain the blocklet running environment by requesting the __blocklet__.js interface of the blocklet.

The blocklet project created through Create Blocklet provides an out-of-the-box environment. You can obtain the running environment through window.blocklet

// App DID
window.blocklet.appId

// App version
window.blocklet.version

// Application Name
window.blocklet.appName

// Application description
window.blocklet.appDescription

// Application Url
window.blocklet.appUrl

// Shared environment variables
window.blocklet.<shared env>

Blocklet Scripts

Blocklet Server provides hook functions to do some things during the execution life cycle. Currently it includes pre-install, post-install, pre-start, post-start, pre-stop, pre-uninstall, pre-config Hooks.

See blocklet.yml: Scripts

Run scripts in a blocklet environment

When developing blocklets, sometimes we want to execute scripts in the blocklet environment (such as creating some test data).

This can be achieved by executing blocklet exec, such as

blocklet exec mock/test.js

// mock/test.js

const { env } = require('@blocklet/sdk');
const { getWallet } = require('@blocklet/sdk');

console.log(env);
console.log(getWallet().address);

Communication between Blocklet components

Use the Blocklet SDK to communicate with other blocklets in your app

const { component } = require('@blocklet/sdk');

(async () => {
  await component.call(name, path, data);
})();

How to migrate during upgrade

When the data structure of the blocklet's persistent storage is incompatible with changes, we can use the migration script to complete automatic data migration.

Method:

Create a migration directory under the blocklet root directory

Create a migration file in the migration directory with the file name semver version, such as 1.0.1.js
