Usage & Cost Analytics

Understanding AI model consumption is crucial for managing costs, monitoring performance, and ensuring fair resource allocation. This document provides a detailed guide on how to query usage statistics, track costs, and interpret the data models AIGNE Hub uses for analytics and reporting.

Overview

AIGNE Hub records every API interaction as a ModelCall entry. These records form the basis for all usage analytics. The system provides several API endpoints to query and aggregate this data, allowing you to monitor consumption for the entire system or on a per-user basis. This enables detailed tracking of token usage, credit consumption, and overall API call volume.

Data Models

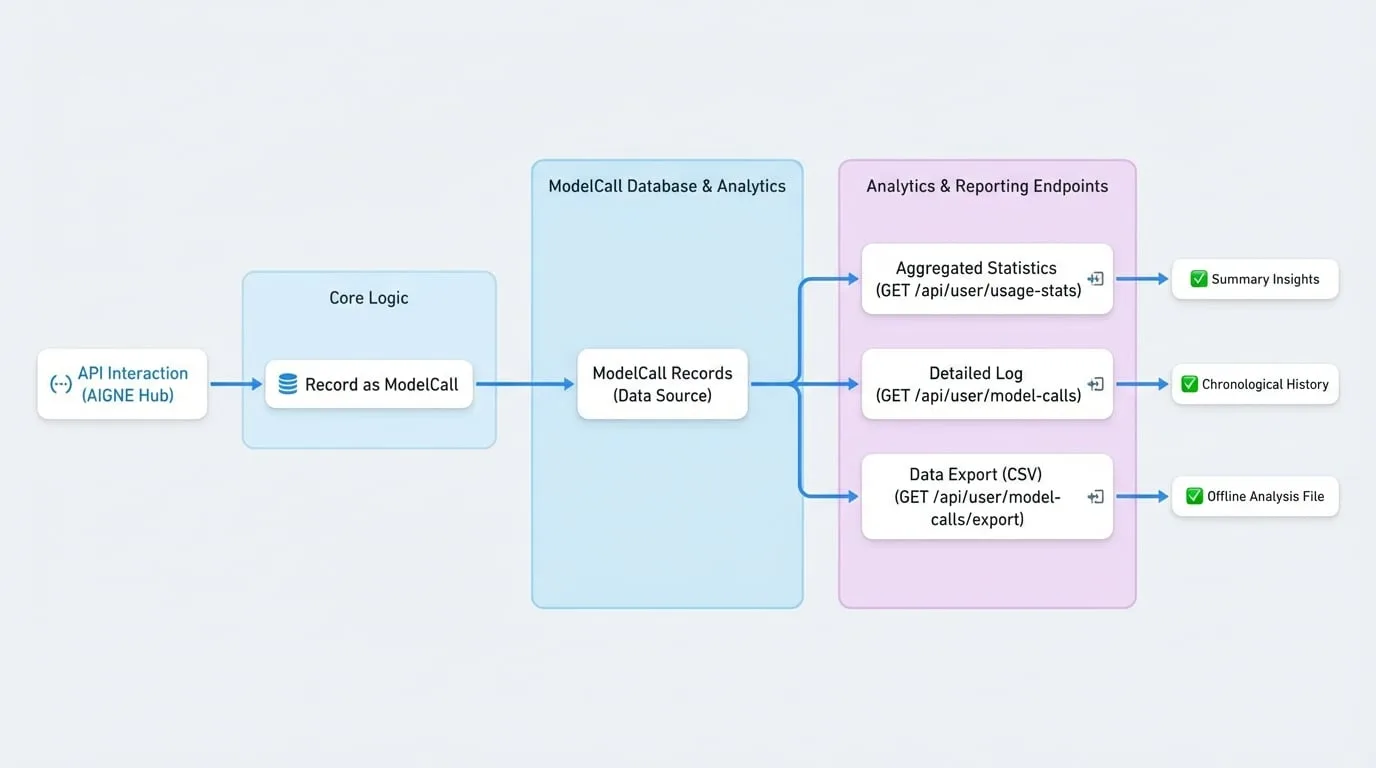

Understanding the underlying data structures is essential for effectively querying and interpreting analytics data. The following diagram illustrates how a ModelCall record is generated and used by the analytics endpoints.

Usage & Cost Analytics

The ModelCall Object

Every request made to an AI provider through the hub is logged as a ModelCall. This object contains detailed information about the request, its execution, and the associated costs.

  • id string (required) — A unique identifier for the model call record.
  • providerId string (required) — The identifier of the AI provider used for the call.
  • model string (required) — The specific model that was called (e.g., 'gpt-4o-mini').
  • credentialId string (required) — The ID of the credential used for authentication with the provider.
  • type string (required) — The type of the API call. Possible values include 'chatCompletion', 'embedding', 'imageGeneration', 'audioGeneration', 'video', or 'custom'.
  • totalUsage number (required) — A normalized usage metric. For text models, this is typically the total number of tokens (input + output).
  • usageMetrics object — A detailed breakdown of usage, such as input and output tokens.
    • inputTokens number — The number of tokens in the input prompt.
    • outputTokens number — The number of tokens in the generated response.
  • credits number (required) — The number of credits consumed by the call, based on the configured model rates.
  • status string (required) — The final status of the call. Can be 'success' or 'failed'.
  • duration number — The duration of the API call in seconds.
  • errorReason string — If the call failed, this field contains the reason for the failure.
  • appDid string — The DID of the application that initiated the call.
  • userDid string (required) — The DID of the user who made the call.
  • requestId string — An optional client-side request identifier for tracing.
  • callTime number (required) — The Unix timestamp when the call was made.
  • createdAt string (required) — The timestamp when the record was created in the database.

Querying Usage Data

You can retrieve analytics data through several REST API endpoints. These endpoints require authentication.

Fetching Usage Statistics

To get a summarized and aggregated view of usage over a specific period, use the GET /api/user/usage-stats endpoint. For system-wide analytics, administrators can use GET /api/user/admin/user-stats.

Request Parameters

  • startTime string (required) — The start of the time range as a Unix timestamp.
  • endTime string (required) — The end of the time range as a Unix timestamp.
  • allUsers boolean — When using /api/user/model-calls, set to true to fetch data for all users. This is restricted to admin users.

Example Request

Requesting user stats

bash
curl -X GET 'https://your-aigne-hub-url/api/user/usage-stats?startTime=1672531200&endTime=1675228799' \
--header 'Authorization: Bearer <YOUR_ACCESS_TOKEN>'

Response Body

The endpoint returns a comprehensive object containing a summary, daily breakdowns, model statistics, and trend comparisons.

  • summary object — An object containing aggregated totals for the specified period.
    • totalCredits number — Total credits consumed.
    • totalCalls number — Total number of API calls.
    • modelCount number — Total number of unique models used.
    • byType object — An object with usage statistics broken down by call type (e.g., 'chatCompletion').
      • [callType] object
        • totalUsage number — Total usage (e.g., tokens) for this type.
        • totalCredits number — Total credits consumed by this type.
        • totalCalls number — Total calls of this type.
        • successCalls number — Number of successful calls of this type.
  • dailyStats array — An array of objects, each representing a day's usage statistics.
    • date string — The date in 'YYYY-MM-DD' format.
    • credits number — Total credits consumed on this day.
    • tokens number — Total tokens processed on this day.
    • requests number — Total API calls made on this day.
  • modelStats array — An array listing the most frequently used models.
    • providerId string — The ID of the provider for the model.
    • model string — The name of the model.
    • totalCalls number — Total number of calls made to this model.
  • trendComparison object — Comparison of usage between the current and previous period.
    • current object — Statistics for the current period.
    • previous object — Statistics for the equivalent previous period.
    • growth object — Growth rates between the two periods.

Listing Model Calls

For a detailed, chronological log of individual API requests, use the GET /api/user/model-calls endpoint. This provides access to the raw ModelCall records with pagination and filtering.

Request Parameters

  • page number (default: 1) — The page number for pagination.
  • pageSize number (default: 50) — The number of items to return per page. Maximum is 100.
  • startTime string — The start of the time range as a Unix timestamp.
  • endTime string — The end of the time range as a Unix timestamp.
  • search string — A search term to filter results by model name, application DID, or user DID.
  • status string — Filter by call status. Can be 'success', 'failed', or 'all'.
  • model string — Filter by a specific model name.
  • providerId string — Filter by a specific provider ID.
  • appDid string — Filter by a specific application DID.
  • allUsers boolean — If true, returns model calls for all users (admin only).

Example Request

Listing model calls

bash
curl -X GET 'https://your-aigne-hub-url/api/user/model-calls?page=1&pageSize=10&status=failed' \
--header 'Authorization: Bearer <YOUR_ACCESS_TOKEN>'

Response Body

The response is a paginated list of ModelCall objects.

response.json

json
{
  "count": 1,
  "list": [
    {
      "id": "z8VwXGf6k3qN...",
      "providerId": "openai",
      "model": "gpt-4o-mini",
      "credentialId": "z3tXy..._default",
      "type": "chatCompletion",
      "totalUsage": 150,
      "usageMetrics": {
        "inputTokens": 100,
        "outputTokens": 50
      },
      "credits": 0.0002,
      "status": "failed",
      "duration": 2,
      "errorReason": "API key is invalid.",
      "appDid": "z2qa9sD2tFAP...",
      "userDid": "z1...",
      "requestId": null,
      "callTime": 1675228799,
      "createdAt": "2023-01-31T23:59:59.000Z",
      "updatedAt": "2023-01-31T23:59:59.000Z",
      "traceId": null,
      "provider": {
        "id": "openai",
        "name": "openai",
        "displayName": "OpenAI",
        "baseUrl": "https://api.openai.com/v1",
        "region": null,
        "enabled": true
      },
      "appInfo": {
        "appName": "My AI App",
        "appDid": "z2qa9sD2tFAP...",
        "appLogo": "...",
        "appUrl": "..."
      },
      "userInfo": {
        "did": "z1...",
        "fullName": "John Doe",
        "email": "john.doe@example.com",
        "avatar": "..."
      }
    }
  ],
  "paging": {
    "page": 1,
    "pageSize": 10
  }
}

Exporting Model Calls

You can export the model call history to a CSV file for offline analysis or reporting using the GET /api/user/model-calls/export endpoint. This endpoint accepts the same filtering parameters as the listing endpoint.

Example Request

Exporting model calls

bash
curl -X GET 'https://your-aigne-hub-url/api/user/model-calls/export?startTime=1672531200&endTime=1675228799' \
--header 'Authorization: Bearer <YOUR_ACCESS_TOKEN>' \
-o model-calls-export.csv

The server will respond with a text/csv file containing the requested data.

Summary

The analytics features in AIGNE Hub provide powerful tools for monitoring and understanding AI model usage. By leveraging the ModelCall data model and the associated API endpoints, you can build dashboards, generate reports, and gain critical insights into your operational costs and performance.

For details on how credits are configured and billed, refer to the Service Provider Mode documentation.
