Prepare Transaction Claim

The prepareTx claim is a powerful tool for dApps that need users to complete and sign transactions, especially in payment and asset transfer scenarios. Unlike a standard signature claim where the entire transaction is pre-defined, prepareTx sends a partially constructed transaction to the wallet. The wallet is then responsible for adding the necessary inputs (like tokens or assets) to meet a specified requirement, signing the completed transaction, and returning it to the dApp.

This is particularly useful when the dApp knows what needs to be paid but doesn't know which specific assets the user will pay with. The user can select the required inputs directly from their wallet, providing a flexible and secure user experience.

See the Signature Claim for simpler signing requests where the transaction is fully formed by the dApp.

How It Works#

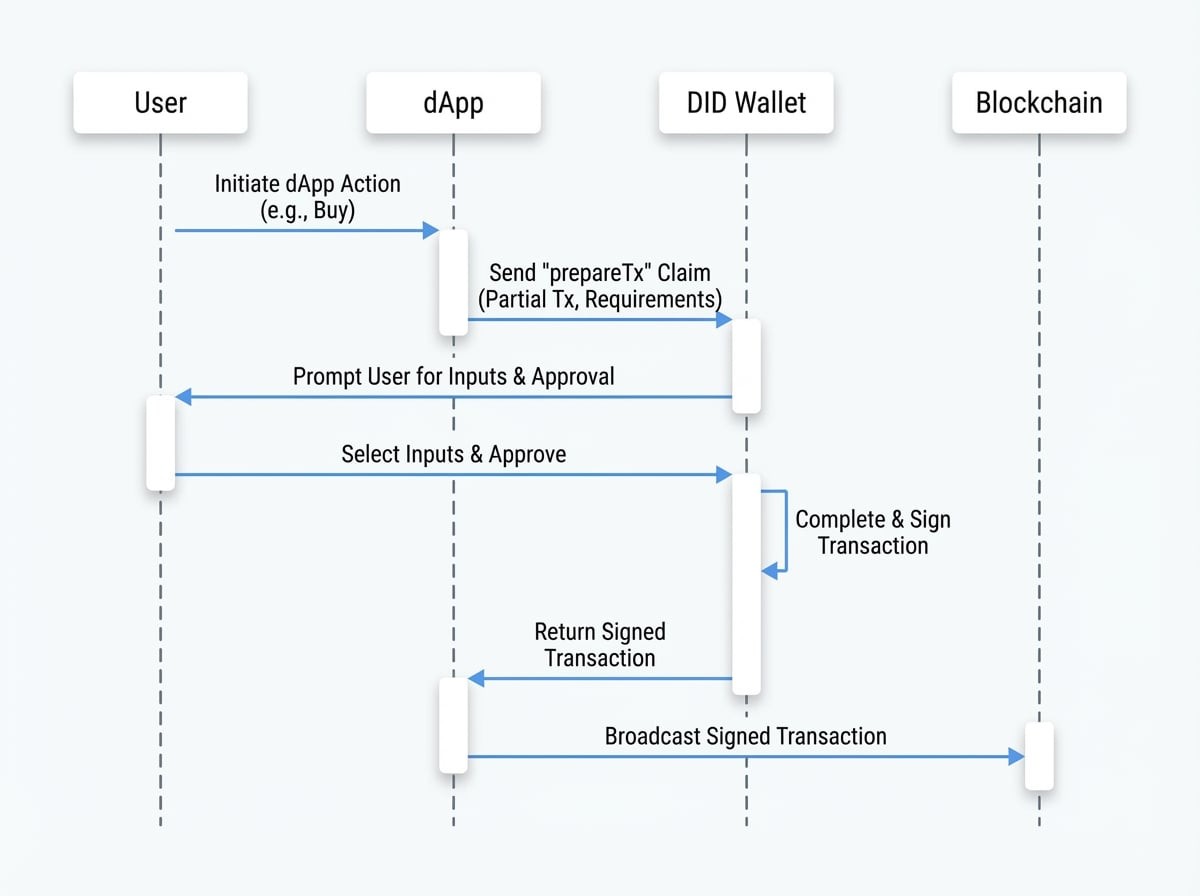

The workflow for a prepareTx claim involves the application defining the core logic of a transaction while leaving the funding part to the user's wallet.

1. Initiation: The user performs an action in the dApp that requires a transaction, like making a purchase.
2. Claim Generation: The dApp constructs a partial transaction (e.g., a transfer to its own address) and a requirement object detailing what the user needs to contribute (e.g., 100 native tokens).
3. Wallet Interaction: The wallet receives the claim, presents the transaction details to the user, and provides an interface for them to select the tokens or assets needed to satisfy the requirement.
4. Completion & Signing: Once the user approves and selects their assets, the wallet completes the transaction with the chosen inputs and signs it with the user's private key.
5. Return to dApp: The wallet returns the fully signed, ready-to-broadcast transaction to the dApp.
6. Broadcast: The dApp receives the signed transaction and can then submit it to the blockchain for processing.

Parameters#

The prepareTx claim object is configured with the following properties:

Parameter	Type	Description
description	string	A user-friendly message explaining the purpose of the transaction. Defaults to 'Prepare and sign this transaction to continue.'.
partialTx	string or object	Required. The partially constructed transaction. This can be a raw transaction object or a pre-encoded, Base58-encoded string.
requirement	object	Required. An object specifying the resources the wallet must add to the transaction.
display	string	Optional. A JSON string containing { type, content } to provide a richer UI display in the wallet.
chainInfo	object	The blockchain information where the transaction will be executed. Can be provided here or globally in the WalletAuthenticator config.
meta	any	Optional. Any extra metadata you want to associate with the claim. Defaults to {}.
mfa	boolean	Optional. If set to true, the wallet will be prompted to perform multi-factor authentication.
nonce	string	Optional. A nonce to be included in the transaction if required by the protocol.

Requirement Object#

The requirement object is crucial for defining what the user needs to contribute.

Field	Type	Description
tokens	Array<object>	Required. An array of token requirements. Each object must contain address (the token's DID) and value (the amount required as a string or BN.js instance).
assets	object	Optional. An object specifying NFT requirements. You can filter assets by address, parent, issuer, or specify an amount of assets to be included.

Example#

Here is an example of how to request a prepareTx claim. The dApp wants to receive 100 units of a specific token. It creates a partial transaction and defines the requirement for the wallet.

const claims = {
  // Using a raw transaction object that the SDK will encode
  prepareTx_raw: [
    'prepareTx',
    ({ userDid, userPk }) => ({
      type: 'TransferV2Tx', // The transaction type for the SDK to encode
      description: 'Complete this payment to purchase the item.',
      display: JSON.stringify({ type: 'text', content: 'Purchase confirmation for Item #123' }),
      partialTx: {
        itx: {
          to: 'z2qa5b3g7492c3697a4e69b9a6b986b59e4d5',
        },
      },
      requirement: {
        tokens: [
          {
            address: 'z35nB2SA6xxBuoaiuUXUw6Gah2SNU3UzqdgEt', // Token Address
            value: '100',
          },
        ],
      },
    }),
  ],

  // Using a pre-encoded partial transaction

In both cases, the wallet will receive the partial transaction and the requirement. It will then prompt the user to select 100 units of the token with address z35nB2SA6xxBuoaiuUXUw6Gah2SNU3UzqdgEt from their holdings, add them as inputs to the transaction, sign it, and return the result.

Next Steps#

After mastering the prepareTx claim, you might be interested in other related functionalities.
