Bundle Blocklet

The blocklet bundle command is a crucial step in the development lifecycle. It packages your blocklet's source code, assets, and metadata into a standardized .blocklet directory, making it ready for deployment or distribution.

This process intelligently gathers all necessary files specified in your blocklet.yml, includes lifecycle scripts, and prepares a clean, optimized package.

Basic Usage#

To bundle your blocklet, simply navigate to your project's root directory and run the command:

Terminal

blocklet bundle

This command will create a .blocklet folder in your project directory containing the bundled application.

Bundling Process Overview#

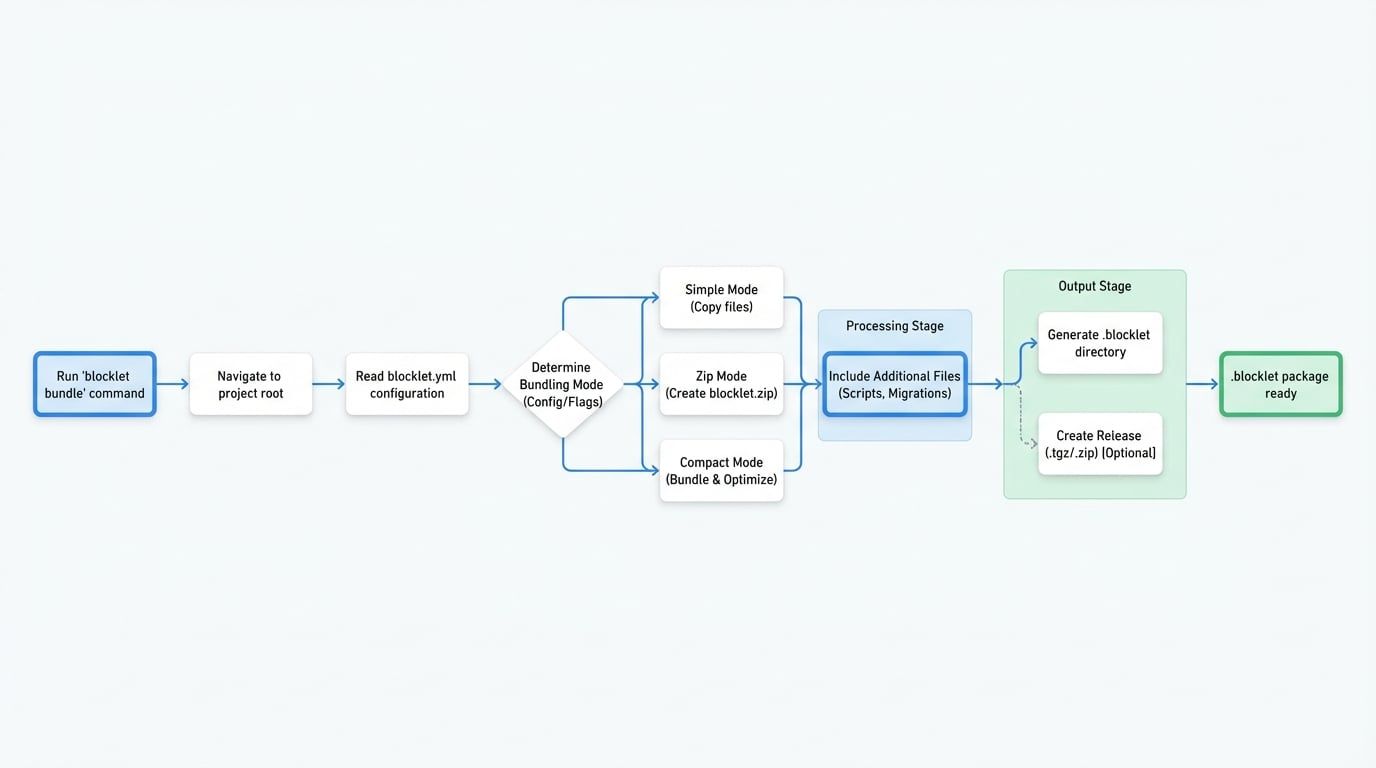

The bundling process involves several key steps to ensure a complete and valid package is created. The following diagram illustrates the interaction between the developer, the Blocklet CLI, and the project files to produce the final bundle output.

Bundle Blocklet

Bundling Modes#

The CLI automatically selects the best bundling mode based on your blocklet's configuration (e.g., group: 'static'). You can also override this behavior by explicitly setting a mode.

Simple Mode

The default mode for most Node.js blocklets (e.g., `group: 'dapp'` or `'gateway'`). It copies the necessary files into the `.blocklet` directory without significant transformation. Use `--simple` to force this mode.

Zip Mode

The default for static blocklets (`group: 'static'`). It bundles the main application code into a `blocklet.zip` archive within the `.blocklet` directory. This is efficient for distributing front-end assets. Use `--zip` to force this mode.

Compact Mode

An advanced mode that bundles the blocklet and its dependencies into a minimal set of files. This mode is ideal for optimizing performance and package size by creating a more self-contained build. Use `--compact` to force this mode.

Command Options#

You can customize the bundling process with the following options:

Option

Description

--zip

Forces the bundler to use zip mode.

--simple

Forces the bundler to use simple mode.

--compact

Forces the bundler to use compact mode for a minimal build.

--create-release

After bundling, creates a distributable .tgz release tarball from the .blocklet directory.

--create-archive

When used with --create-release, it also generates a .zip archive of the bundle.

--changelog <boolean>

Toggles the inclusion of changelog information in the bundle. Defaults to true.

--monorepo

Specifies that the blocklet is part of a monorepo, adjusting file resolution accordingly.

--source-map

(Compact mode only) Generates source maps for the bundled code.

--nosources-source-map

(Compact mode only) Generates source maps without embedding the original source code.

--minify <boolean>

(Compact mode only) Toggles minification of the output code. Defaults to true.

--external <dependency>

Excludes a specified dependency from the bundle. The dependency is expected to be provided by the runtime environment. Can be used multiple times.

--external-manager <manager>

Specifies the package manager (e.g., npm, yarn) to use for handling external dependencies. Defaults to npm.

--dependencies-depth <number>

(Compact mode only) Sets the depth to scan for dependencies when parsing external modules. Defaults to 9.

Advanced Topics#

Handling External Dependencies#

In compact mode, the bundler attempts to include all necessary dependencies. However, some packages (like @blocklet/sdk or express) are provided by the Blocklet Server runtime. To prevent them from being included in your bundle and reduce its size, use the --external flag.

Terminal

# Exclude a single dependency
blocklet bundle --compact --external react

# Exclude multiple dependencies by using the flag again
blocklet bundle --compact --external react --external react-dom

# Exclude multiple dependencies with a comma-separated list
blocklet bundle --compact --external react,react-dom

Including Additional Files#

The bundler automatically includes files beyond your main source code based on your configuration:

  • files in blocklet.yml: Any files or glob patterns listed in the files array of your blocklet.yml will be included.
  • Lifecycle Scripts: JavaScript files referenced in your scripts hooks (e.g., pre-start, post-stop) are automatically detected and bundled.
  • Migration Scripts: All scripts within the migration/ directory (e.g., migration/*.js) are included to support database migrations.


After successfully bundling your blocklet, the next step is to version it and prepare for distribution. Continue to the next sections to learn more.
